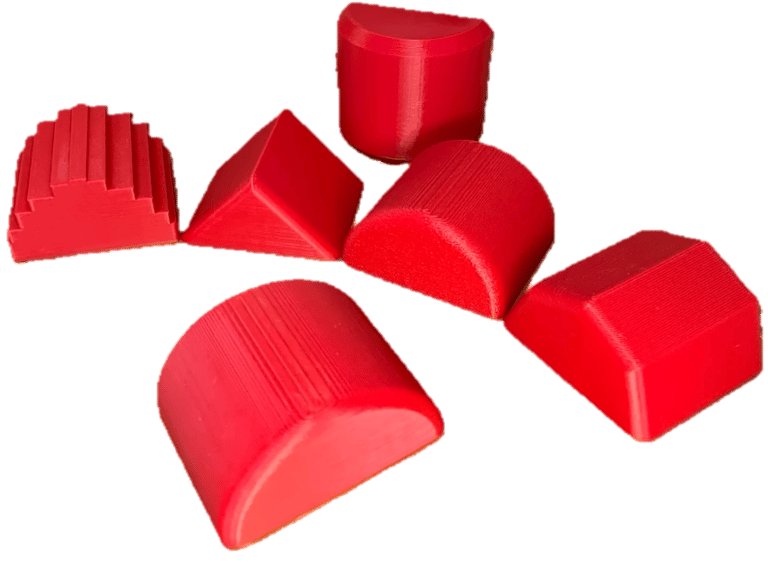

The Challenge of Layer Lines:

A Comprehensive Overview

Strategy 1: Increasing Print Resolution

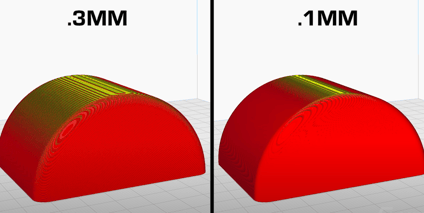

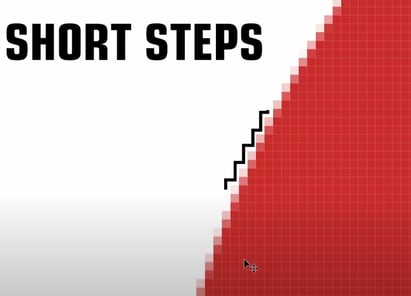

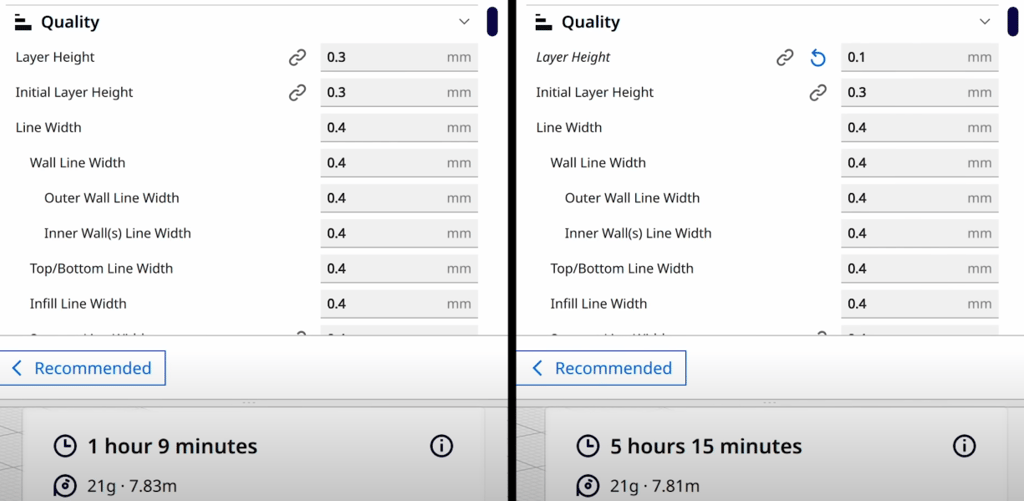

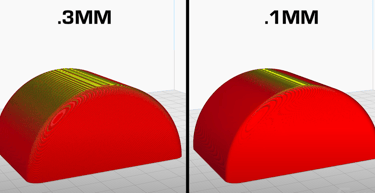

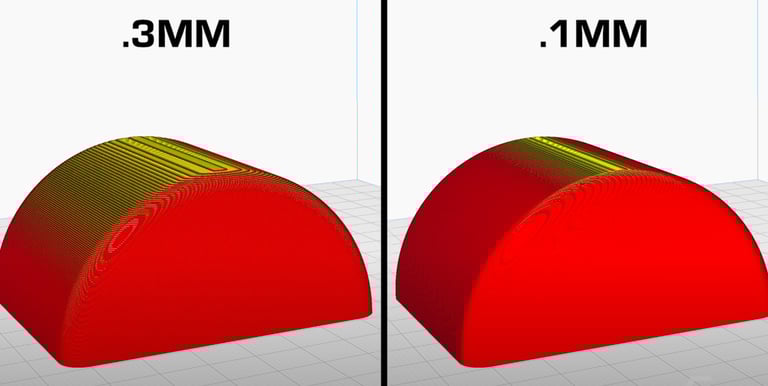

- Resolution Adjustment: One straightforward approach is to reduce the layer resolution from 0.3mm to 0.1mm or lower. This diminishes the visibility of layer lines by ensuring that the curvature incrementally changes less dramatically from one layer to the next.

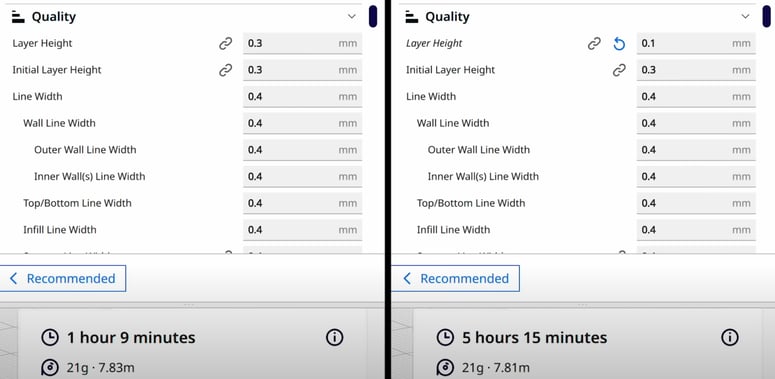

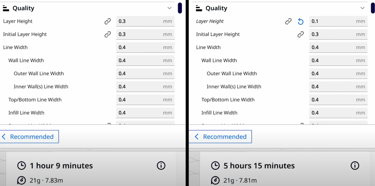

- Challenges: Although reducing layer height improves surface finish, it significantly increases print time and cost—rising print duration could become unfeasible for mass production scenarios.

Strategy 3: Using Flat Edges

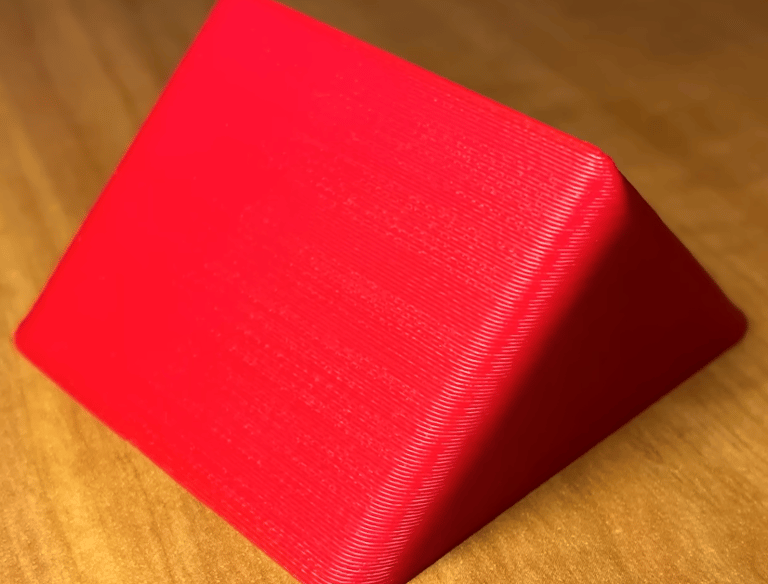

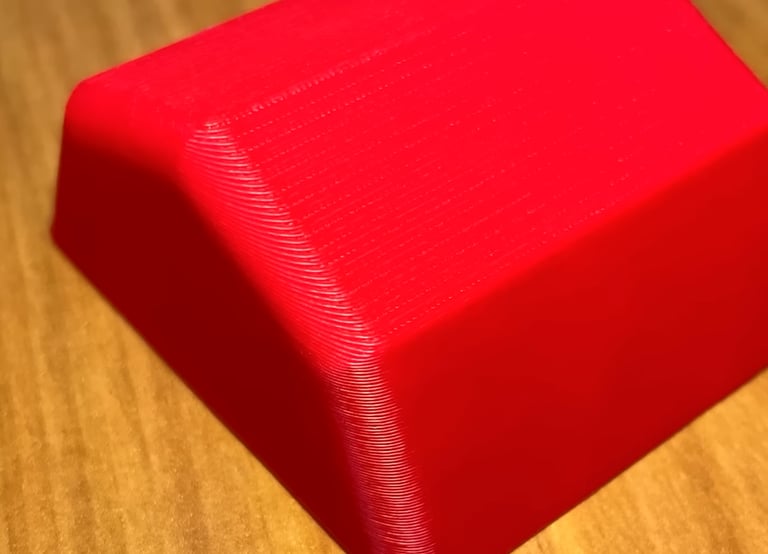

- Alternative Designs: Instead of smooth curves, incorporating flat edges creates consistent slopes across surfaces, simplifying the printing process and maintaining a uniform appearance.

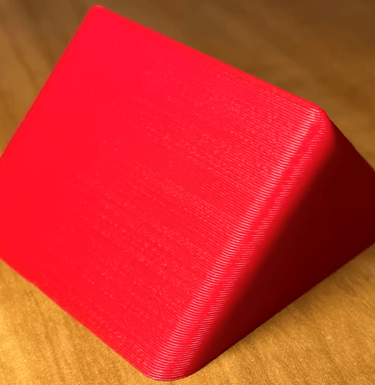

- Shape Examples: A triangular or pyramidal shape preserves angles, allowing for a more straightforward layer application without the gradual increase associated with curves.

Strategy 2: Reorienting Print Orientation

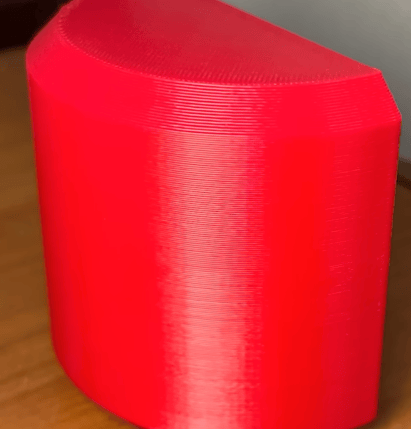

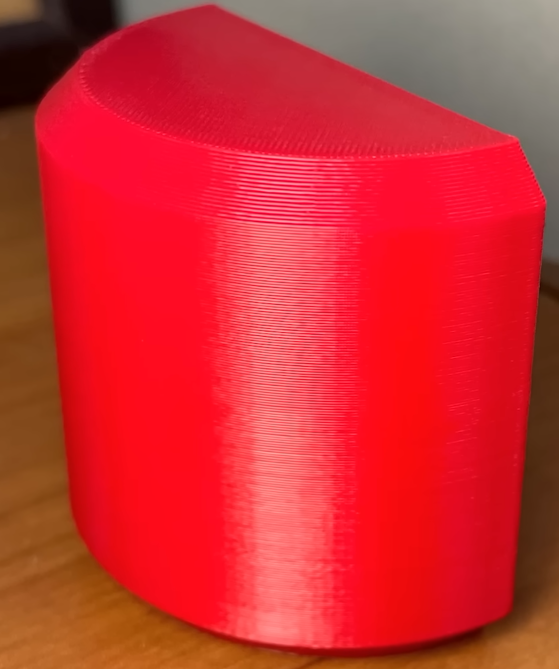

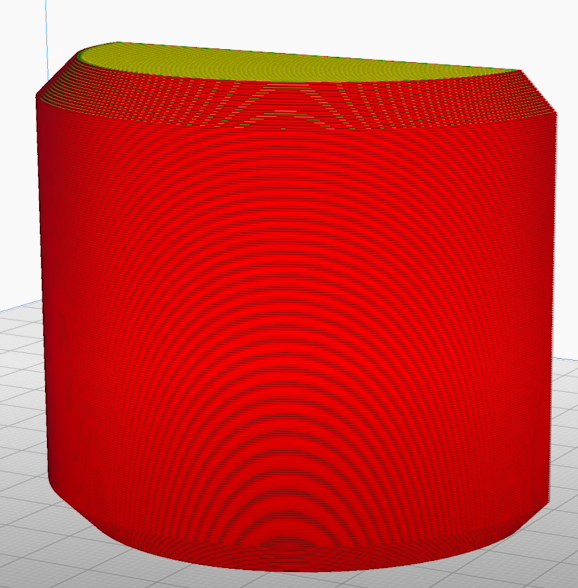

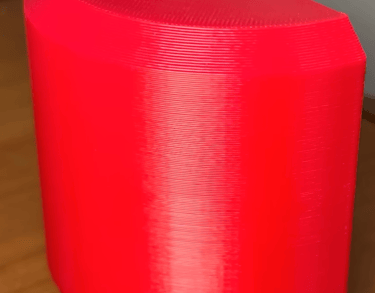

- Horizontal Orientation: Printing the part on its side instead of upright allows for a consistent layer application across the entire length of the part.

- Design Adjustments: This requires careful design considerations, such as implementing a chamfer at the bottom to avoid steep overhangs and ensuring compatibility with the printing method.

Strategy 4: Embracing Pixelation

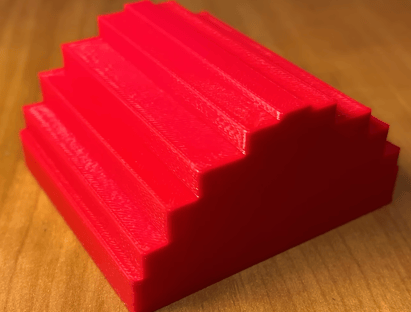

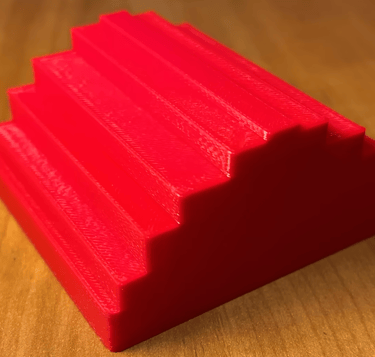

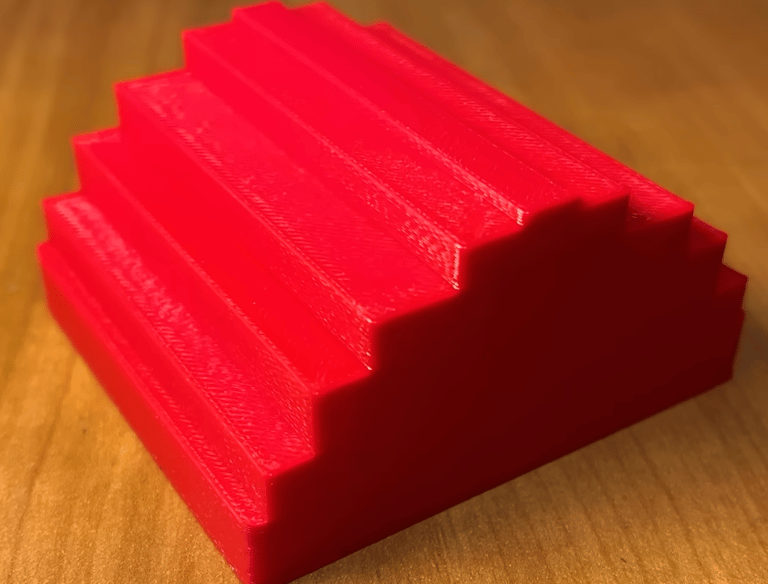

- Pixelating Part Designs: Instead of striving for a flawless surface finish, designers can accept layer lines as a design element. Employing a pixelated texture yields a ‘stair-step’ effect, which can be strategically applied to achieve an appealing visual identity while providing essential functional volume.

- Layer Management: This method maintains consistent vertical alignment of layers, minimizing how layer lines shift with the surface angle, ensuring aesthetic control.

The Nature of Layer Lines

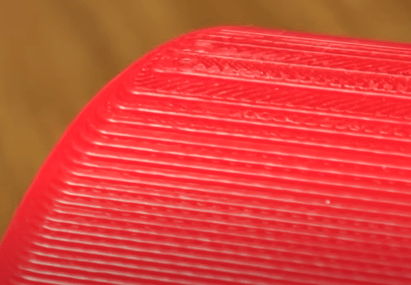

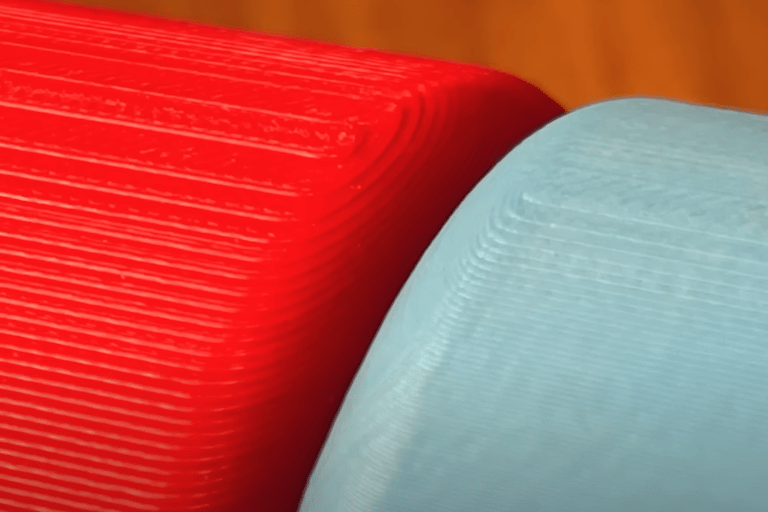

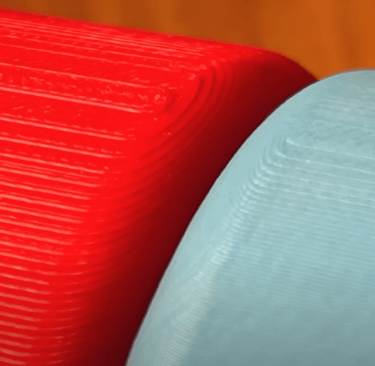

- Layer Lines Defined: Layer lines are visible horizontal lines on the surface of parts produced by 3D printers due to the stacking of layers during the printing process.

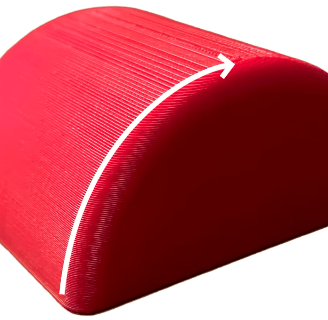

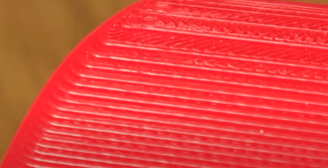

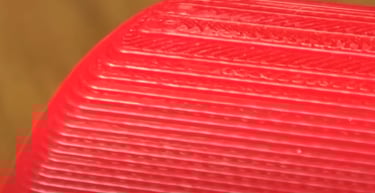

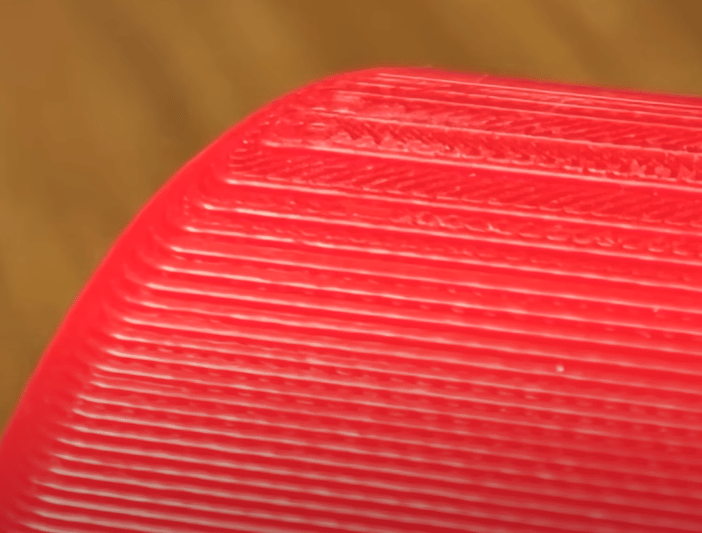

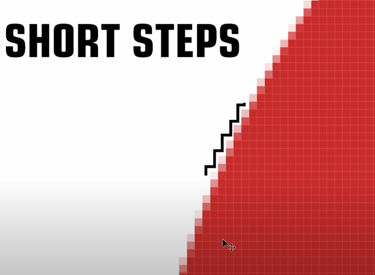

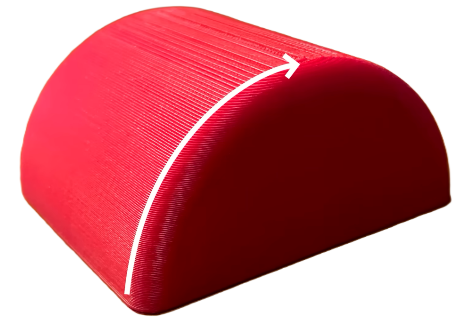

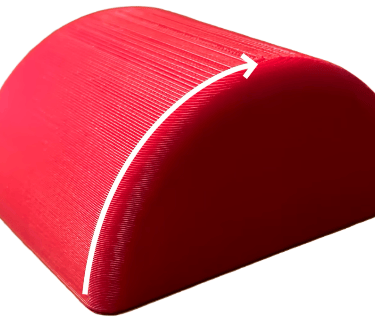

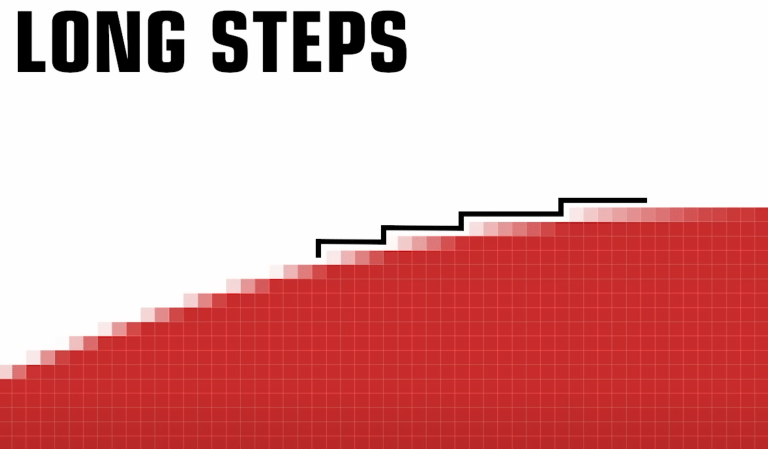

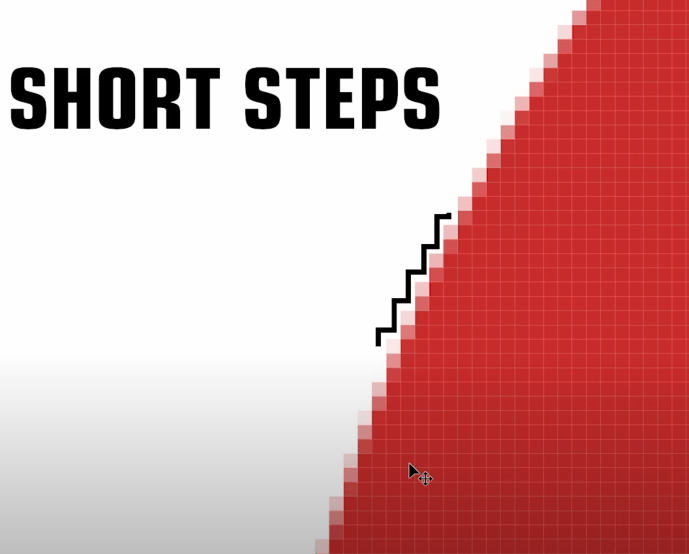

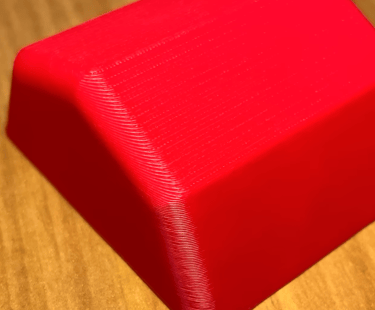

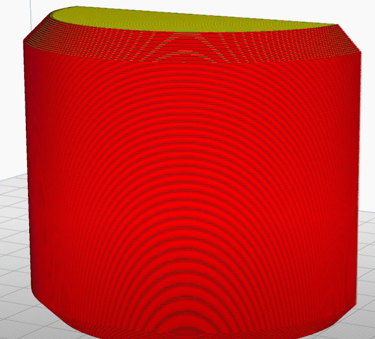

- Cause of Prominence: As a printed part’s vertical height increases, the slope changes, causing the edges of the layers to not only rise but also shift inward to follow the curved surface, resulting in more pronounced layer lines at the top compared to the sides.

- Aesthetic Considerations: For functional parts that require high visual fidelity, such as consumer products or aesthetically pleasing designs, these layer lines are undesirable.

Strategy 5: Integrating Digital Noise

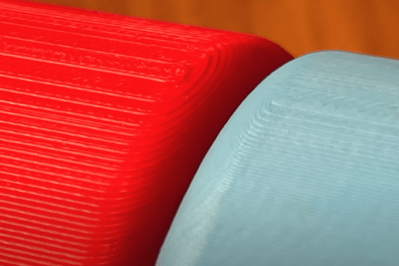

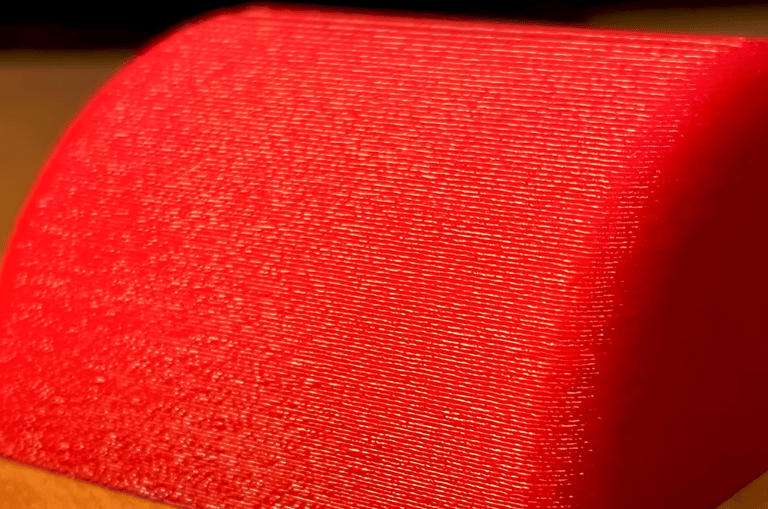

- Use of Digital Noise: This technique involves infusing subtle textures or random digital noise into the CAD design, which can effectively mask the apparent layer lines.

- Visual Result: The incorporation of this texture allows the printed part to appear more organic and less linear, reducing the visibility of the layer lines, particularly at the top areas of curved surfaces.

Conclusion

The challenges inherent to 3D printing—especially prominent layer lines at curved surfaces—pose significant hurdles in manufacturing high-quality parts. However, the discussed strategies present proactive solutions ranging from resolution adjustments to design realignment. By employing innovative strategies, designers can circumvent these challenges, enhancing both the visual appeal and functionality of 3D printed components. Future integration of these methods could lead to more refined processes and broadened applications, making 3D printing an even more versatile manufacturing option. In understanding and adapting these techniques, industry professionals can better meet manufacturing demands, pushing the boundaries of what is achievable in additive manufacturing.
