Designing Holes for Mass Production 3D Printing
In the realm of mass production printing, the design of simple features like holes is often overlooked, yet it is critical to the functionality and quality of finished parts. This chapter delves into the intricacies of designing holes, emphasizing their importance in ensuring structural integrity and precision. Specifically, we will examine various hole types, including punched, through-holes, and non-through holes, while highlighting potential issues and effective design strategies. Key concepts such as fillets, overhangs, sacrificial layers, press fits, and grip fins will be explored as essential vocabulary in understanding successful hole design in 3D printing processes.
Georgy Jacob Founder Anything3D
4/4/20243 min read
Main Concepts and Design Considerations
The Basics of Hole Design

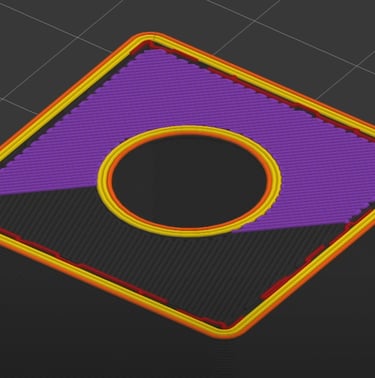

- A common issue with punched holes in 3D printed parts is rippling, which occurs due to sharp corners that don’t accommodate the limitations of the tool head.

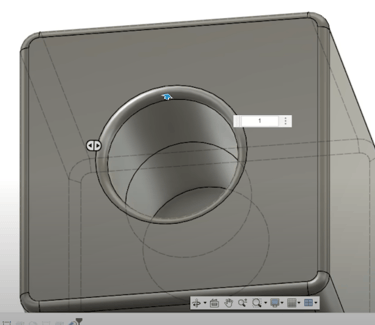

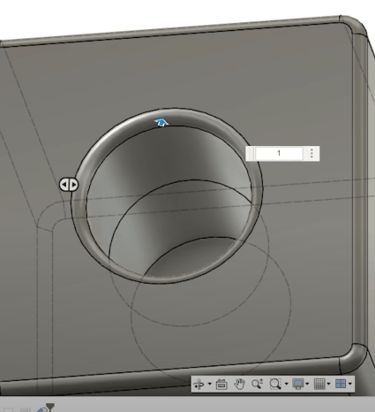

- Adding small fillets around the hole helps create a smoother tool path, leading to a cleaner result.

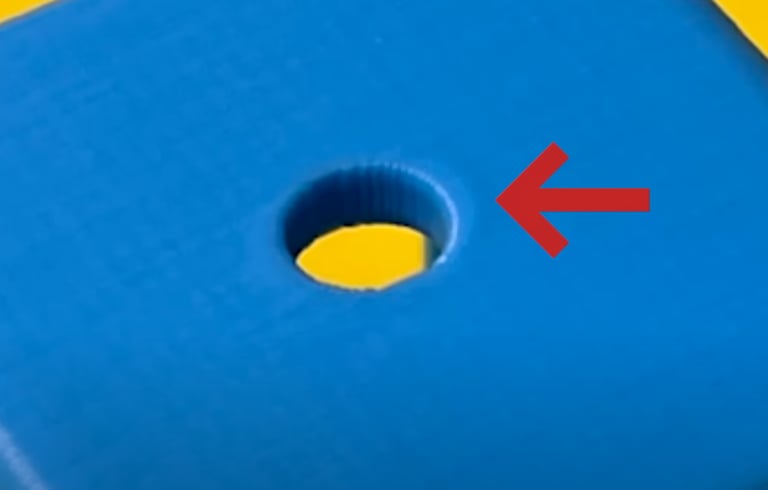

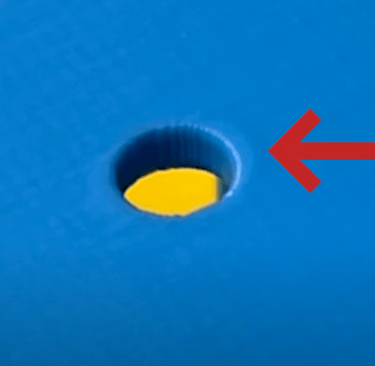

- A significant challenge in hole design arises from sagging, particularly in the top layers of holes, which can affect how screws fit into these holes.
Addressing Top Holes and Unsupported Areas

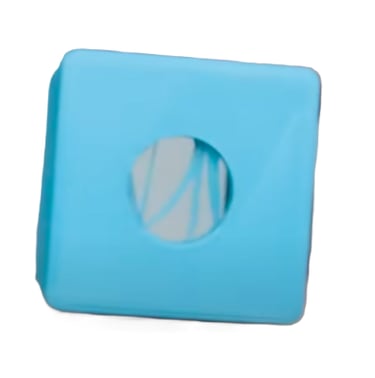

- Top holes pose a unique challenge due to unsupported areas created during printing. Stranding can occur when the printing layers cross through the hole, leading to undesirable defects.

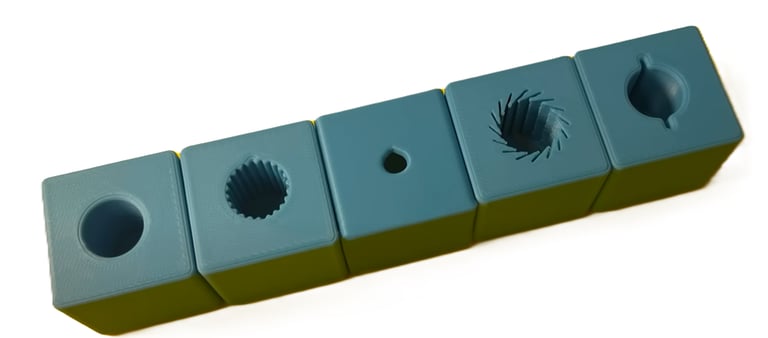

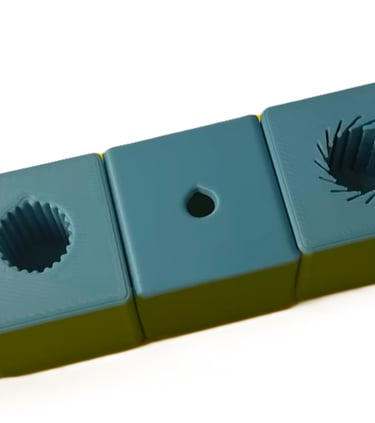

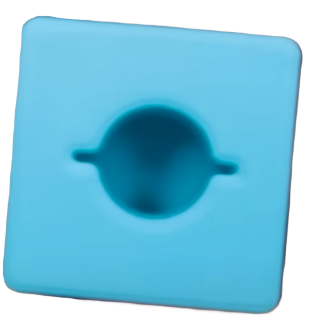

- Many different designs, such as relief features, can be employed to ensure a tight fit while avoiding permanent deformation of the hole.

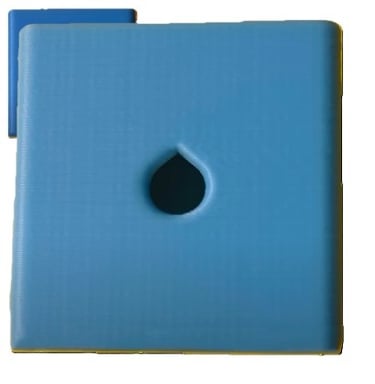

- Solution: Implementing a small point or protrusion at the top helps eliminate sagging by supporting the structure as layers are printed.

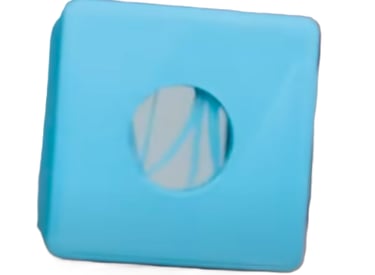

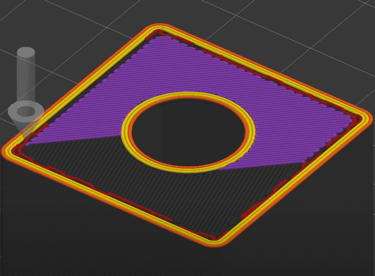

- A potential solution includes using a sacrificial layer, although this only provides mild improvement and still requires some post-processing.
- To maximize structural integrity, support might need to be added beneath larger holes, helping create a clearer outer profile.
Tolerance and Fit in Non-Through Holes
- Tolerance is crucial when designing non-through holes. Achieving a proper fit without excessive variation necessitates a well-chosen diameter.

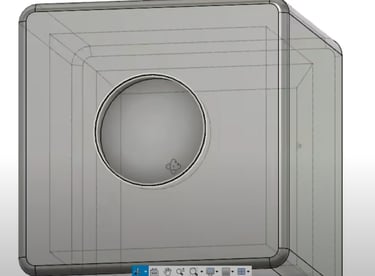

- Chamfering the top of holes can facilitate easier insertion of components while ensuring a snug fit at the bottom.
Advanced Features: Helping Holes Perform Better

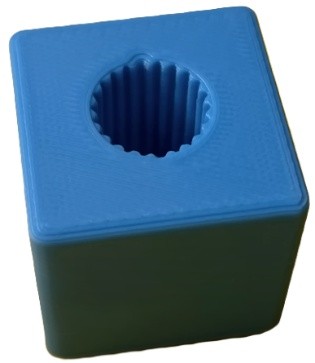

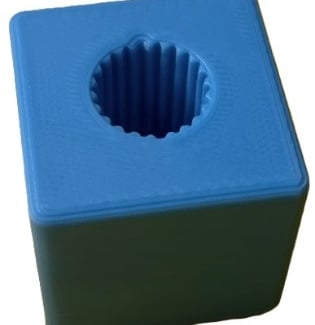

- One effective method to ensure a strong press fit is to implement crush ribs. These ribs are designed to be deformed when a part is pressed in, providing a secure attachment.
- Glue compatibility is enhanced by creating ribs that allow for adhesive to settle and bond effectively.

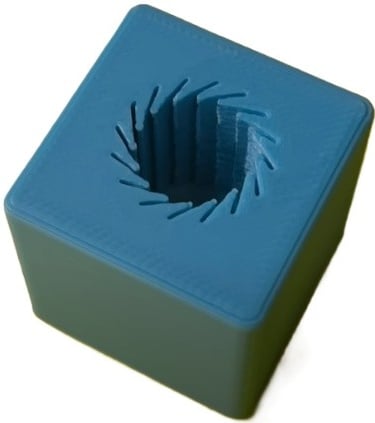

- For assemblies requiring flexibility and repeated use, grip fins can be designed around the edges of the hole. These fins can compress around an inserted rod, maintaining a constant grip that is adjustable.
Real-World Applications and Case Studies
The importance of proper hole design can be exemplified through several applications in industries ranging from electronics to custom tooling:
- Electrical Enclosures: Achieving precision in holes for electrical components is vital. Any sagging or dimensional inaccuracies can lead to troublesome fits or operational failures.
- Industrial Hardware: High-volume production necessitates that each part is designed and manufactured with care. Flawed hole designs can lead to increased material costs due to rework.
- Tool Manufacturing: When creating jigs or fixtures, the repeatability of component fit can significantly affect production efficiency. Grip fins can be particularly advantageous in such applications to ensure parts remain secure during use.
Conclusion
In conclusion, the design of holes in parts for mass production printing involves crucial considerations that directly impact their performance and longevity. Through thoughtful incorporation of techniques like filleting, sacrificial layers, and flexible grip features, designers can overcome common pitfalls associated with hole design. These strategies not only contribute to the structural integrity of components but also enhance manufacturability and assembly. As emerging technologies and materials expand the capabilities of 3D printing, understanding how to effectively design for holes will become increasingly important for engineers and designers in a variety of fields. Embracing creativity and a keen eye for detail will ultimately lead to innovative solutions in product design and manufacturing processes.
