Optimizing 3D Printing with Advanced Design Techniques

Addressing the Challenges of 3D Printing

The Issue of Warping

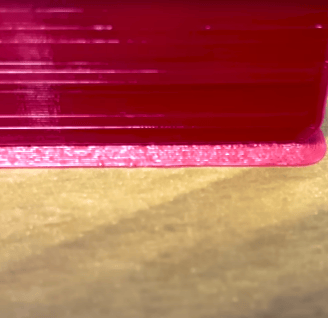

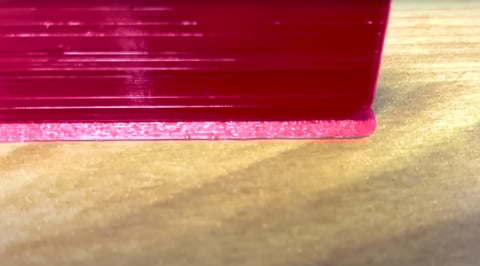

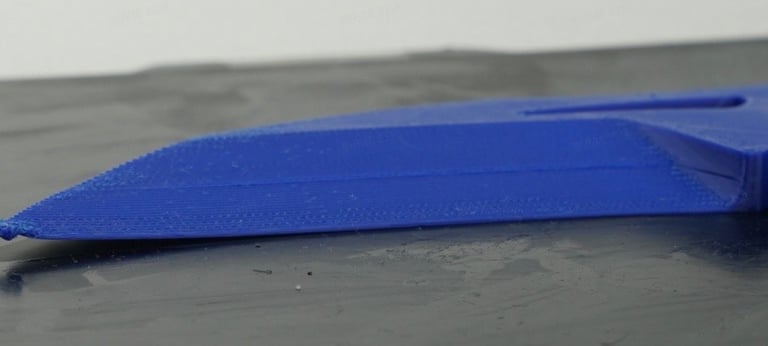

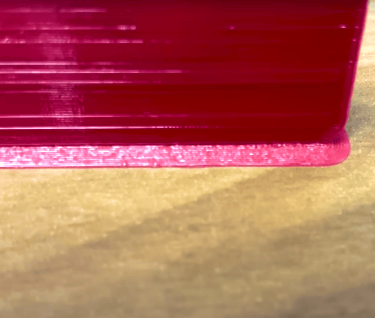

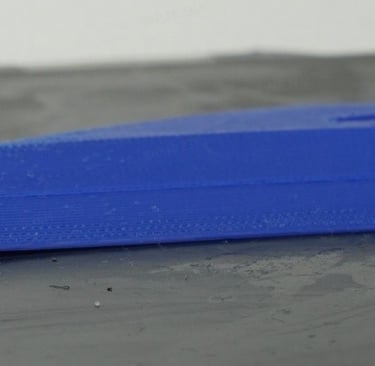

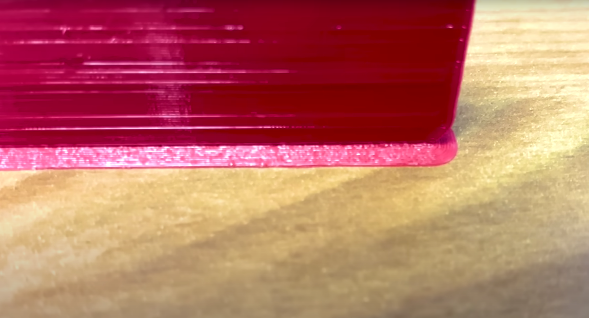

- Warping occurs when the first layer of a print fails to adhere properly to the print bed, particularly at sharp corners.

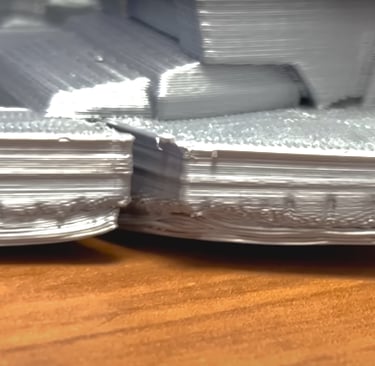

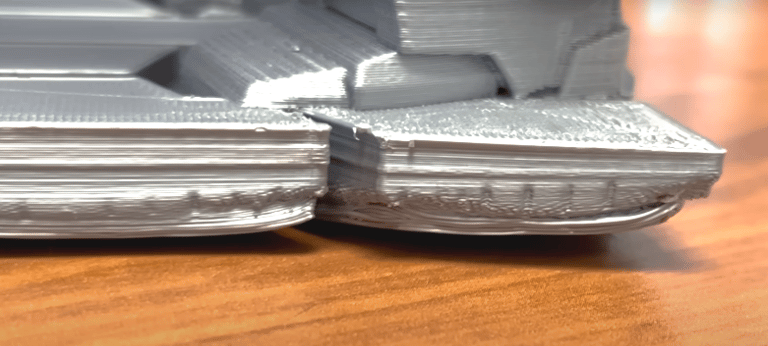

- The dragging behavior during printing can lead to distortion, resulting in either a broken connection to the bed or internal stress leading to curling.

- Parts with intricate designs, like shark fin shapes or gears, face similar challenges. Thus, understanding and mitigating these issues is crucial for successful mass production and high-quality outputs.

Traditional Solutions and Their Limitations

- The conventional approach has been to use a brim —a surrounding strip that aids in adhesion by increasing the footprint of the part being printed.

- While effective, brims necessitate extensive post-processing to remove them after printing, which can be a labor-intensive task that adds time and cost to the manufacturing process.

- A fundamental drawback of brims is their dependency on specific printer settings, leading to challenges in flexibility across different printing setups.

Innovative Design Solutions

Introducing Mouse Ears

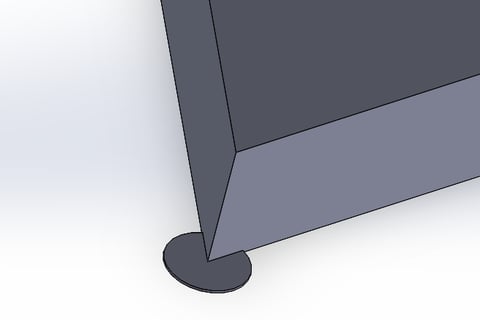

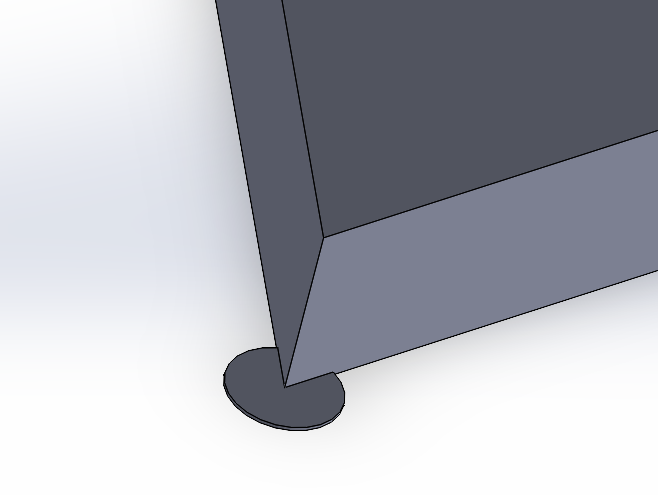

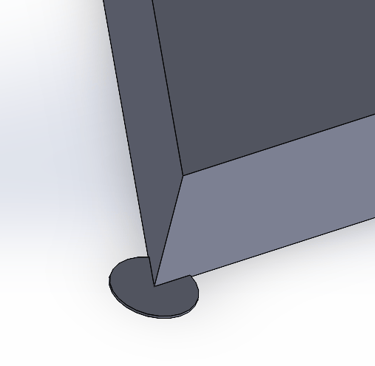

- To circumvent the limitations of brims, the chapter introduces Mouse ears—circular features added at sharp corners that round off the jagged edges.

- This design approach increases surface area for adhesion, thereby promoting better bed contact and reducing the likelihood of warping.

- Mouse ears typically should be designed to a thickness compatible with the first layer, usually about 0.2 mm, ensuring proper capture by most slicing software.

Evolution of Mouse Ear Design: Sprue Design

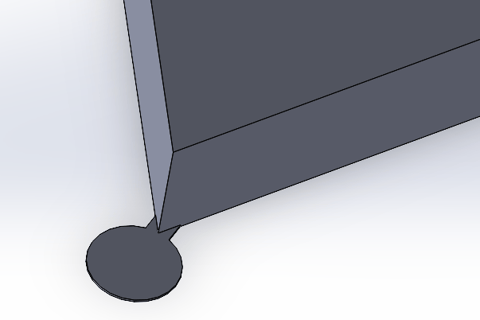

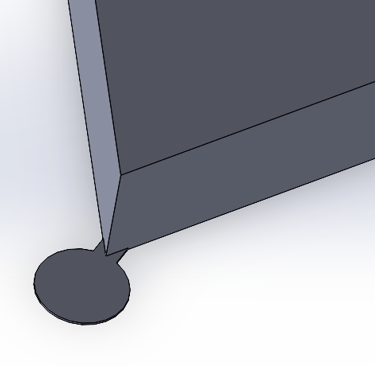

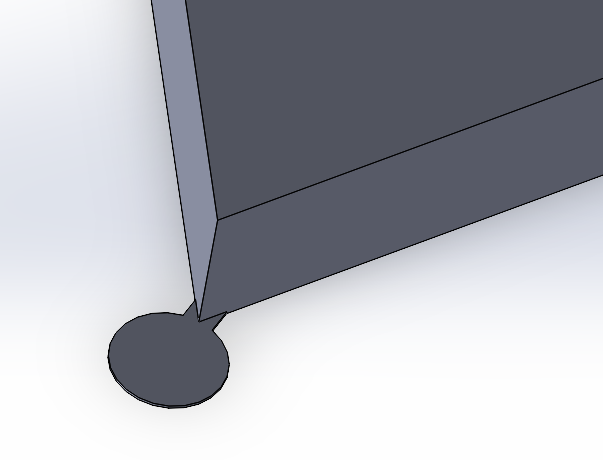

- An advanced variant of the mouse ear concept is the sprue design, where a small protrusion extends from the mouse ear. This enables quick removal after printing.

- The sprue effectively maintains part integrity at critical corners while minimizing post-processing labor. By simply snipping off the tip, post-printing adjustments are significantly reduced.

- However, it is crucial to position the disc's surface area close to the corner to prevent excessive stretching due to internal stresses in denser parts.

Practical Implications and Cost Considerations

- The application of mouse ear designs and sprues can profoundly influence production efficiency. By reducing the touch and labor involved in post-processing, manufacturers can enhance overall productivity and decrease operational costs.

- A major cost driver in 3D printing is not merely the expense associated with machine time and material but also the labor-intensive post-processing tasks.

- Therefore, innovations in design that facilitate easier and faster production play a significant role in scaling operations effectively.

Example Application

- In scenarios where mass production is necessary, implementing sprue design mouse ears enables the production of thousands of consistent prints with minimal risk of warping at corners, illustrating the efficacy of this design adjustment in large-scale 3D printing environments.

Conclusion

The integration of innovative design features, such as mouse ears and sprue options, represents a significant advancement in the manufacturing process of 3D printed parts, particularly those with intricate geometries and sharp corners. These techniques not only reduce the risk of warping but also alleviate post-processing labor, ultimately contributing to cost-effective and efficient production. As the 3D printing landscape continues to evolve, adopting such solutions will be paramount for achieving optimal results and scaling operations in the industry.

Final Thoughts

As technology advances, the pursuit of improving 3D printing workflows is crucial. By sharing insights and seeking feedback on design features, practitioners and enthusiasts alike can continue to drive innovation in this burgeoning field. This chapter serves as a clarion call for further exploration into refined design techniques to ensure high-quality prints are attainable and sustainable at scale.
